SandsBytes Component

This guide explains how to use the SandsBytes component in SandsFlow workflows: configuring it in the designer, passing arguments (including files via temporary file resource IDs), understanding outputs, and fixing common issues.

What The SandsBytes Component Does

The SandsBytes component calls a registered SandsBytes HTTP API (the same FastAPI routes the product exposes) from inside a workflow run. Each execution performs a real HTTP request to the configured path, using the workflow’s security context so the API runs as a specific user.

Use it whenever a workflow should trigger server actions without writing custom component code.

Configuring The Component (UI)

Endpoint (Required)

Open the component’s settings and choose Endpoint. Each option shows the HTTP method and route name; the stored value is the path string (for example /api/...).

You can search or type to match a path. You must select a valid path before the component can run.

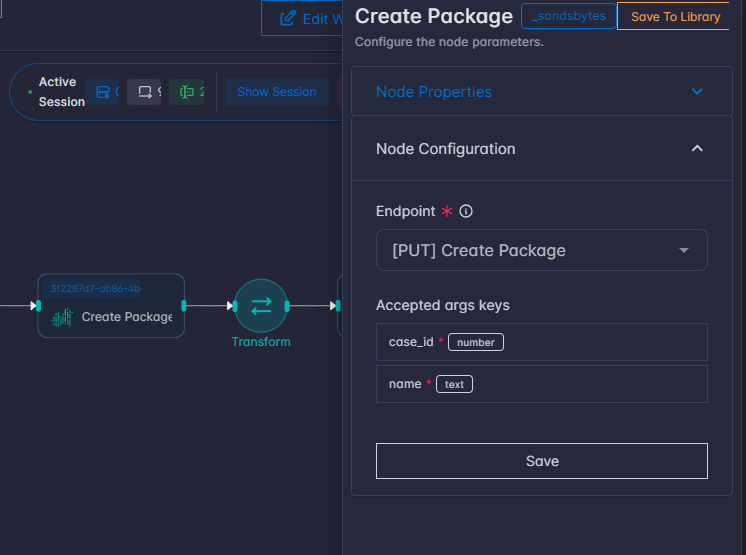

Workflow editor: Create Package SandsBytes component on the canvas connected to Transform; configuration drawer with required Endpoint showing PUT Create Package and Accepted args keys case_id (number) and name (text)

Accepted Args Keys

When an endpoint is selected, a panel Accepted args keys appears. It summarizes, for that route only:

Parameter names accepted by the API
Types and required markers
Default values where defined
Allowed values for select-style parameters

SandsBytes Component Arguments and API

At run time, args is a dictionary that flows from the previous node (or from Start for the first step after start). This is where API parameter values must appear.

Allowlist Behavior

Only keys that exist in the selected endpoint’s registered parameter list are sent to the API. Any other keys in args are ignored for the HTTP call.

Validation Before The Request

If the route metadata is available, the component validates:

Required parameters (including path parameters with no default) are present in args.
select parameters: the value must be one of the allowed options.

Failures produce clear error messages naming the endpoint and the problem.

Note

Often those IDs do not match API parameter names. Use a Transform node between Start and SandsBytes to map or build the exact keys the Accepted args keys panel shows.

Component Output

On success, the component returns a dictionary that:

Copies all keys from the incoming args (when args was a dict).
Adds one key: sandsbytes — the HTTP response body as interpreted by the server:

JSON responses — Usually a normal object or list.
Non-JSON text — You may see a small object with content (text) and status_code.
File download responses — An object with file: true, Base64-encoded content, filename, content_type, size, and status_code.

Important

On HTTP error status (4xx/5xx), the component does not return a normal result: the task fails and the workflow surfaces an exception-style message (for example Authentication failed, Permission denied, Validation error, Server error, or Request failed for network issues).

File Upload To SandsBytes

SandsBytes never receives a raw file path from you for file-type API parameters. Instead, you pass a temporary_file workflow resource ID (a string). At run time the engine looks up tracked files for that resource in resource_state, reads the bytes, and sends them to the API.

Note

The value you put in args for a file parameter is always the resource id (or a list of ids if the API allows multiple files), not a path on disk.

Steps

Add a Temporary File resource in the workflow’s Resources UI.

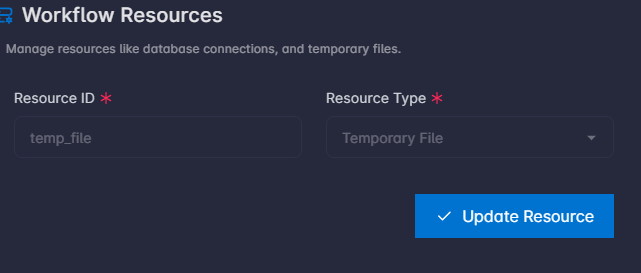

Workflow Resources dialog: Resource ID set to temp_file, Resource Type Temporary File, and Update Resource button

Drop the SandsBytes component in the canvas, then select an endpoint with file upload (for example [POST] Upload Document File), then check the parameter that requires a file.

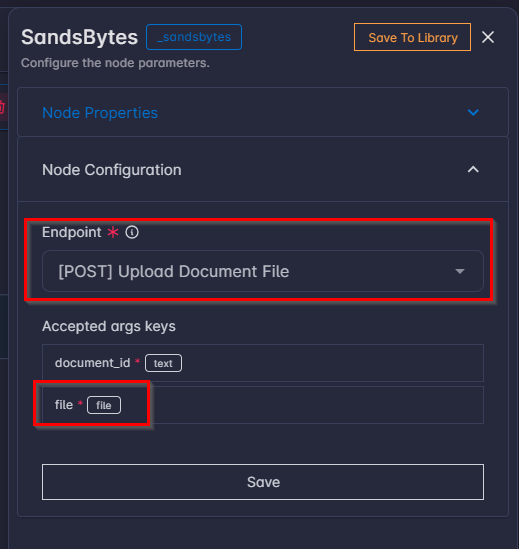

SandsBytes node configuration: Endpoint set to POST Upload Document File; Accepted args keys showing required document_id (text) and file (file)

Use a Transform component before the SandsBytes component to pass the temporary file resource_id to SandsBytes as args.

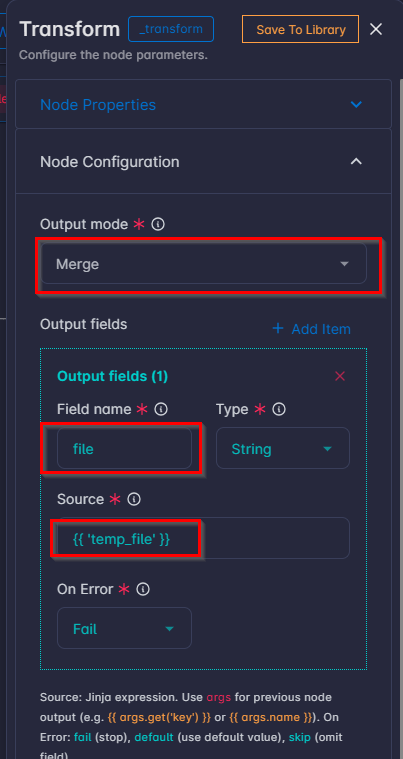

Transform node configuration: Output mode Merge; output field name file, type String, source Jinja expression with temp_file resource id, On Error Fail

Troubleshooting (General)

Symptom	What to check
`Missing required parameters for endpoint '…'`	Add the listed parameters to `args` (correct names). Use Transform after Start if names differ.
`Invalid options for parameters for endpoint '…'`	For `select` fields, use exactly one of the allowed values from Accepted args keys.
`endpoint is required`	Save the component with an Endpoint selected.
`Acting user ID is required but not found`	Run must be tied to a user (normal UI runs do this). Unusual contexts (custom runners) need to supply user context.
`Internal executor token not configured`	Server `INTERNAL_EXECUTOR_TOKEN` (or equivalent) must be set by an administrator.
`Authentication failed` / `Permission denied` / `Validation error` / `Server error`	The API rejected the call; inspect the message and the acting user’s permissions or payload.
Keys in `args` seem ignored	They are not in that endpoint’s registered parameter list; rename or map them to the official names.
